PPR Fittings & Valves

Name: PPR Fittings & Valves
Brand: Techno

PPR fittings and PPR-brass (metal insert) fittings to ISO 15874-3 / DIN 16962. Green fittings for indoor use, black fittings for outdoor/UV-exposed use. Same socket-fusion system as the pipes.

The exploded view of fitting Techno0001 shows a metal cartridge inside the union body — this may be a non-return (check) valve. Confirm the exact function with Techno before publishing a technical claim about it.

PPR Fittings & Valves — Datasheet ↓ Request a Quote

Standard ISO 15874 / DIN 8077 (pipes), ISO 15874-3 / DIN 16962 (fittings)

Operating pressure25 bar @ 20°C cold / 12.5 bar @ 70°C hot (max 95°C short peak)

Service life50 years

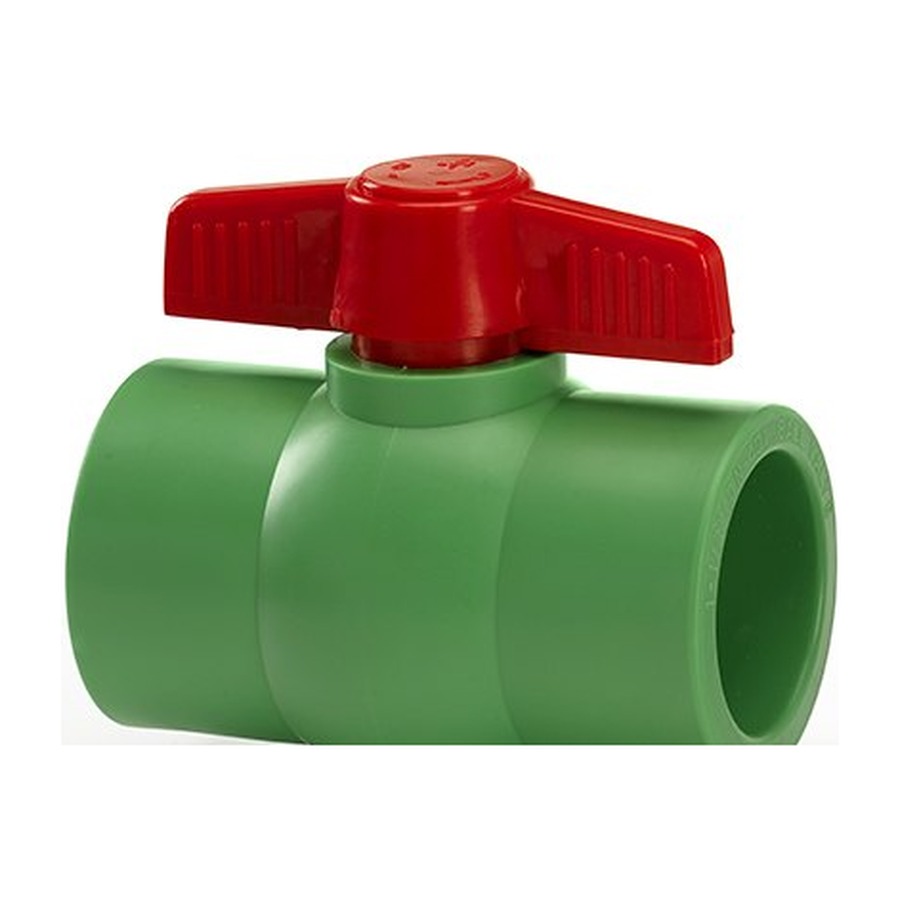

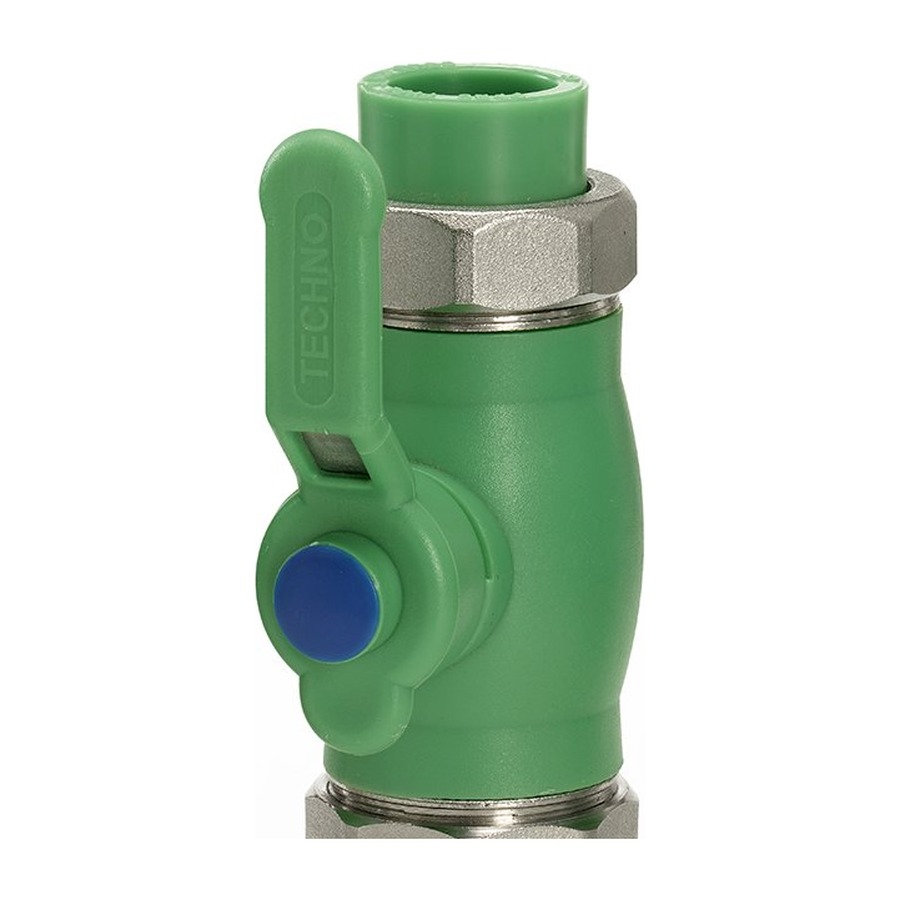

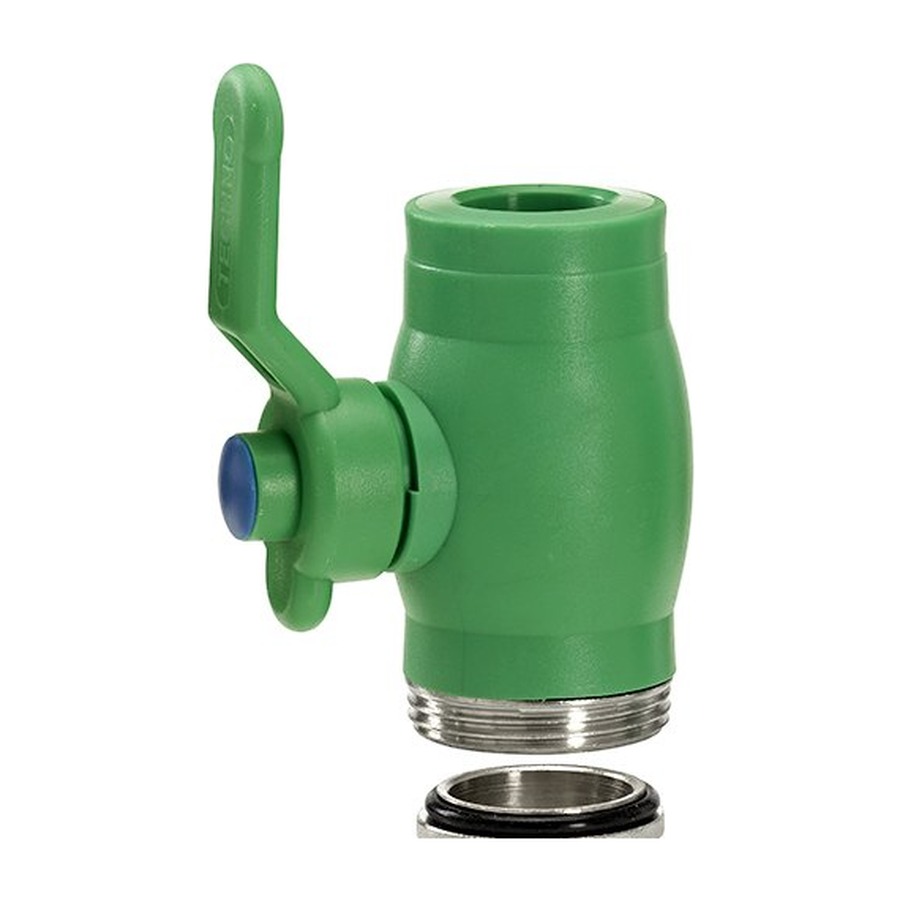

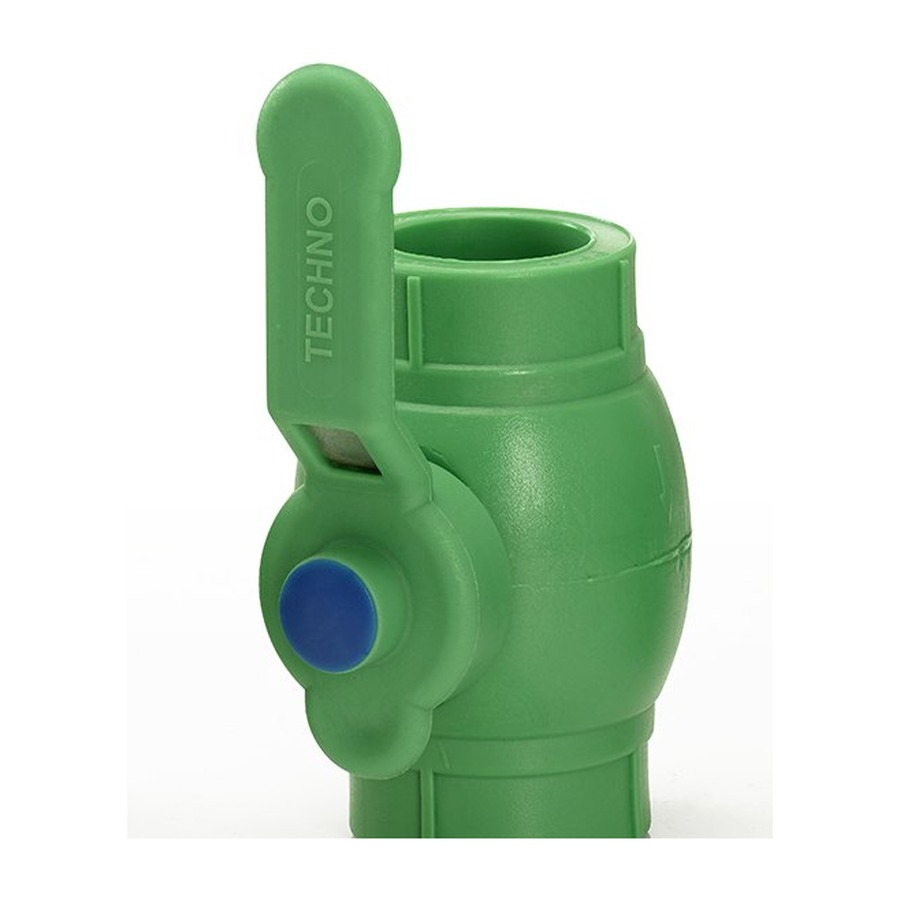

ExceptionPlastic unions and plastic ball valves: low pressure only — 10 bar, cold water

The range

Plain (socket-fusion) fittings

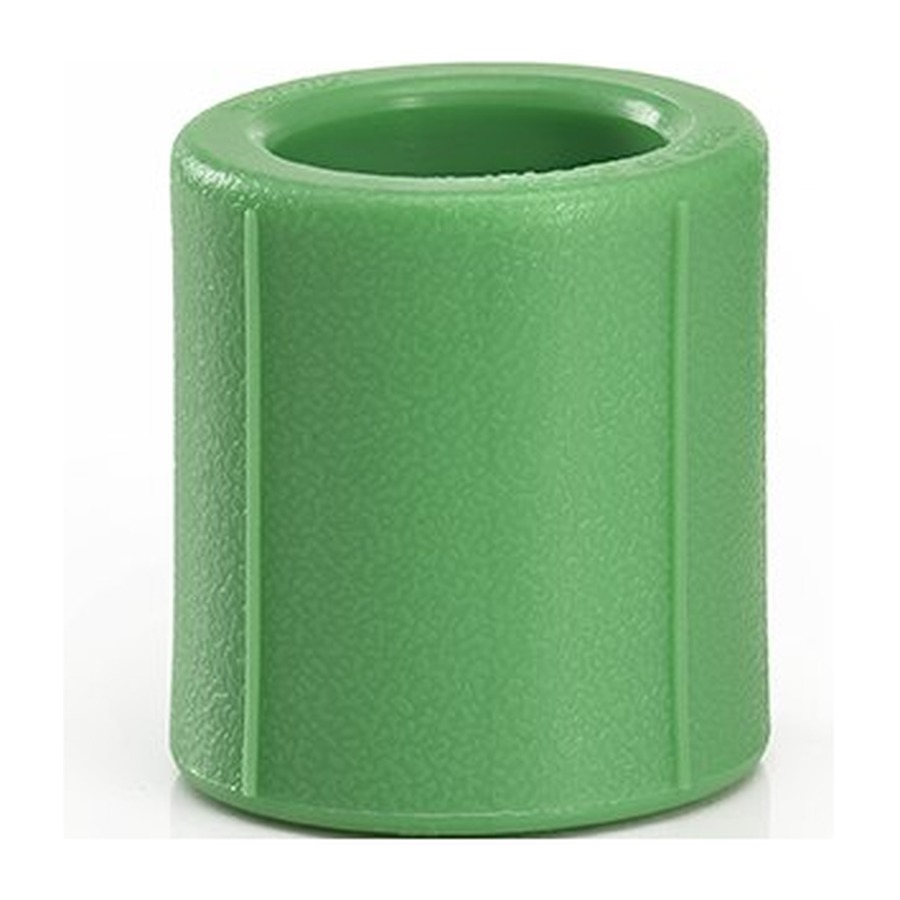

Coupling / Socket 0017, 0013 (large Ø)

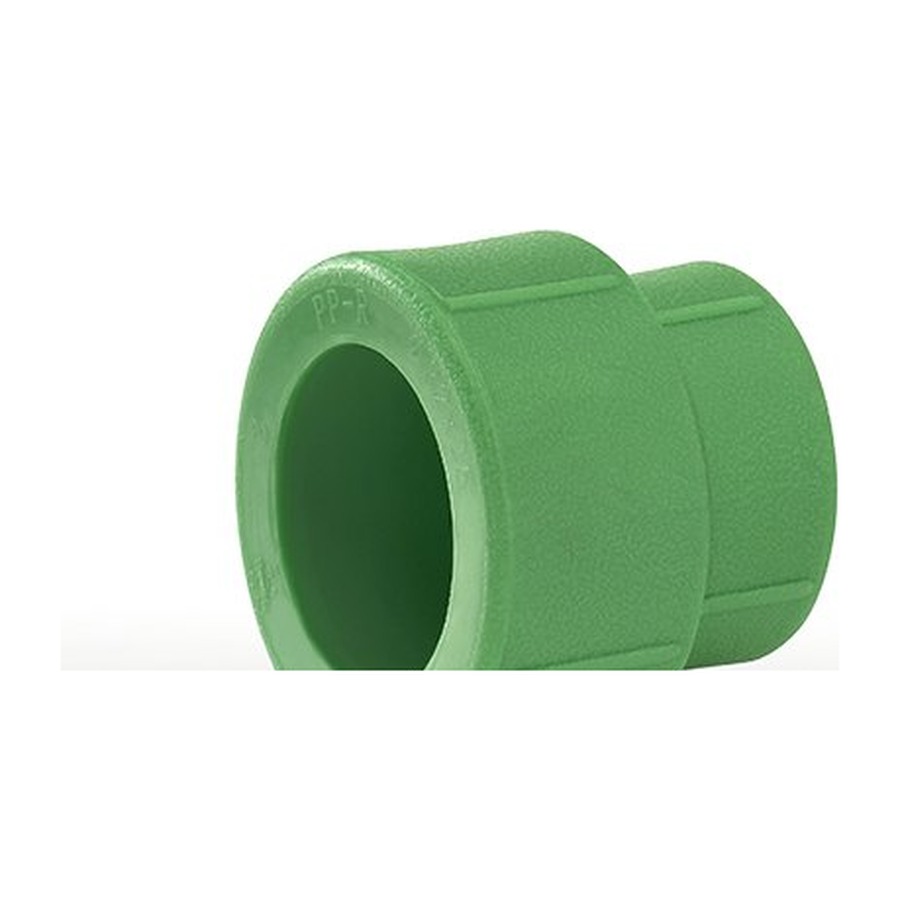

Reducing Socket (Reducer) 0007

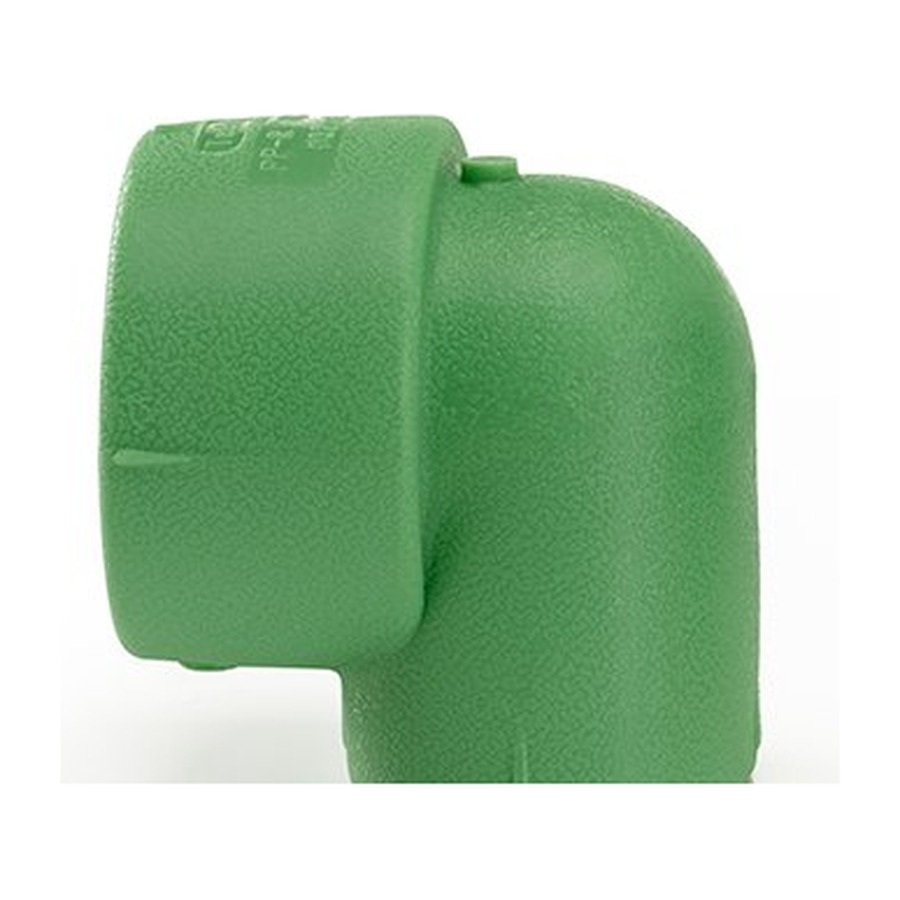

Elbow 90° 0010, 0011, 0053/0054 (large Ø)

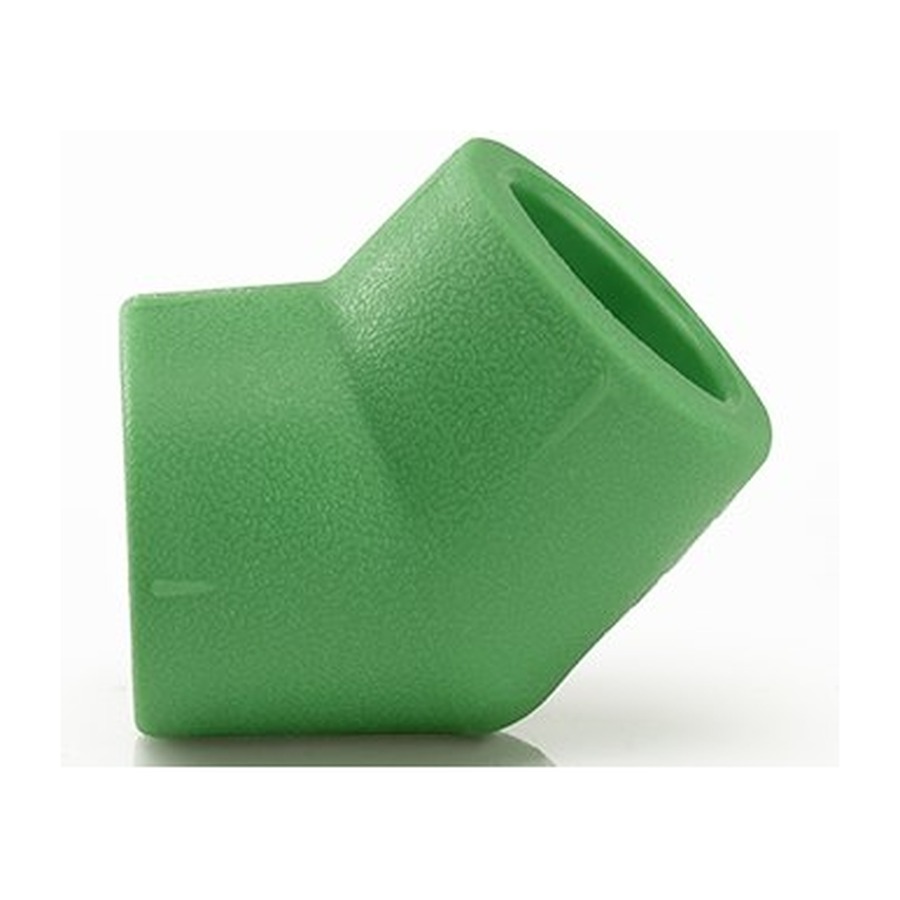

Elbow 45° 0012

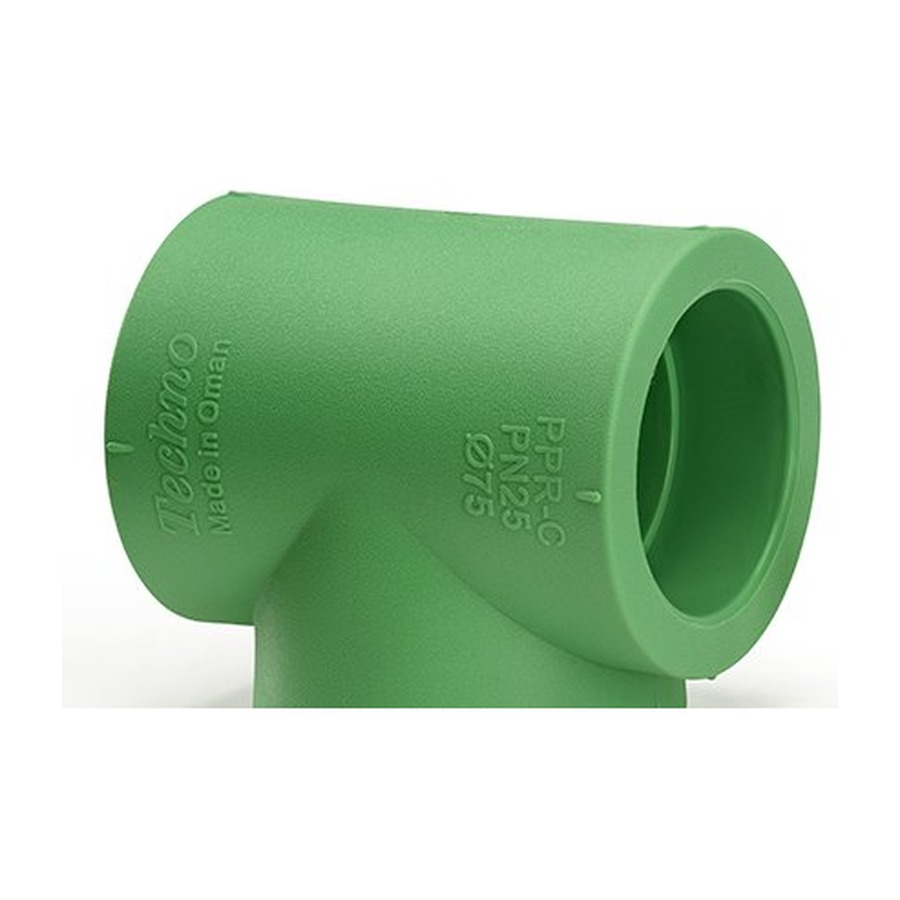

Equal Tee 0014, 0015

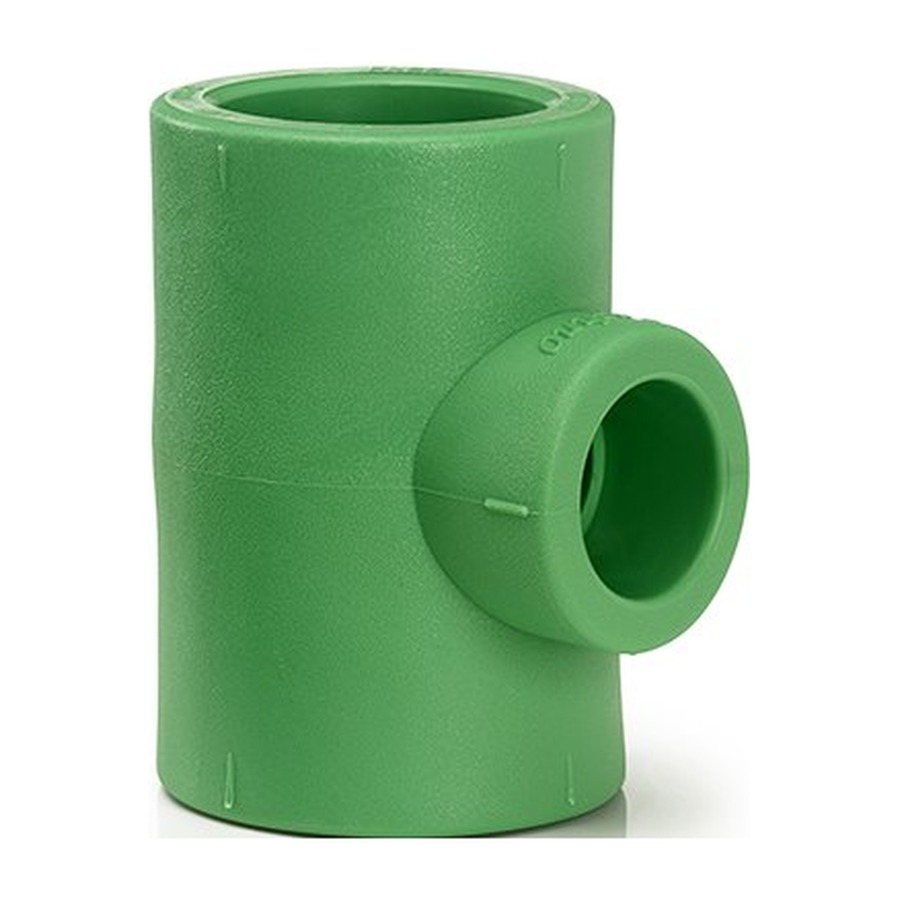

Reducing Tee 0016

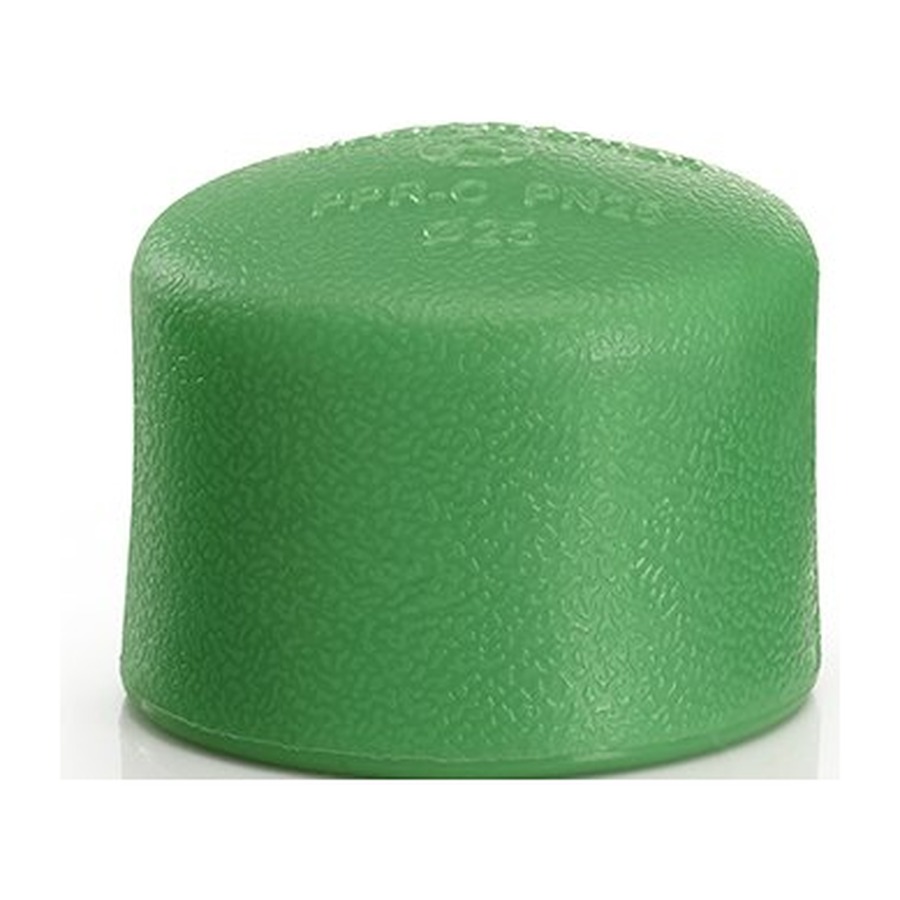

End Cap 0004, 0006 (large Ø)

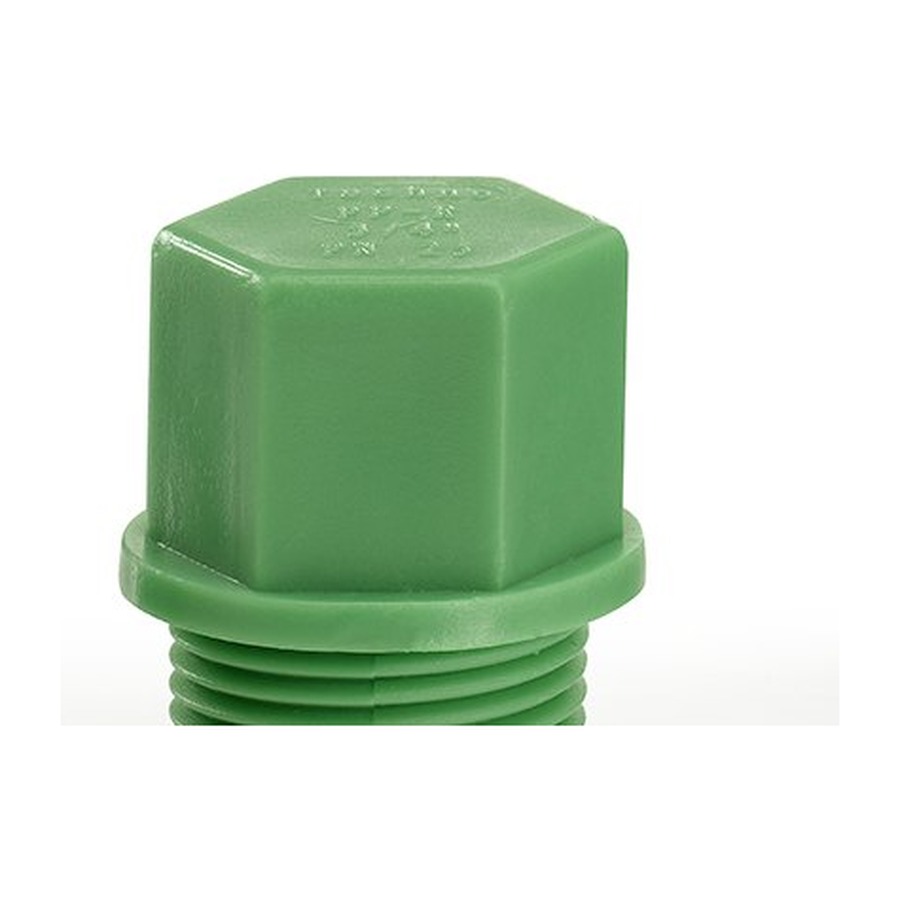

Threaded Plug (male, hex head) 0003

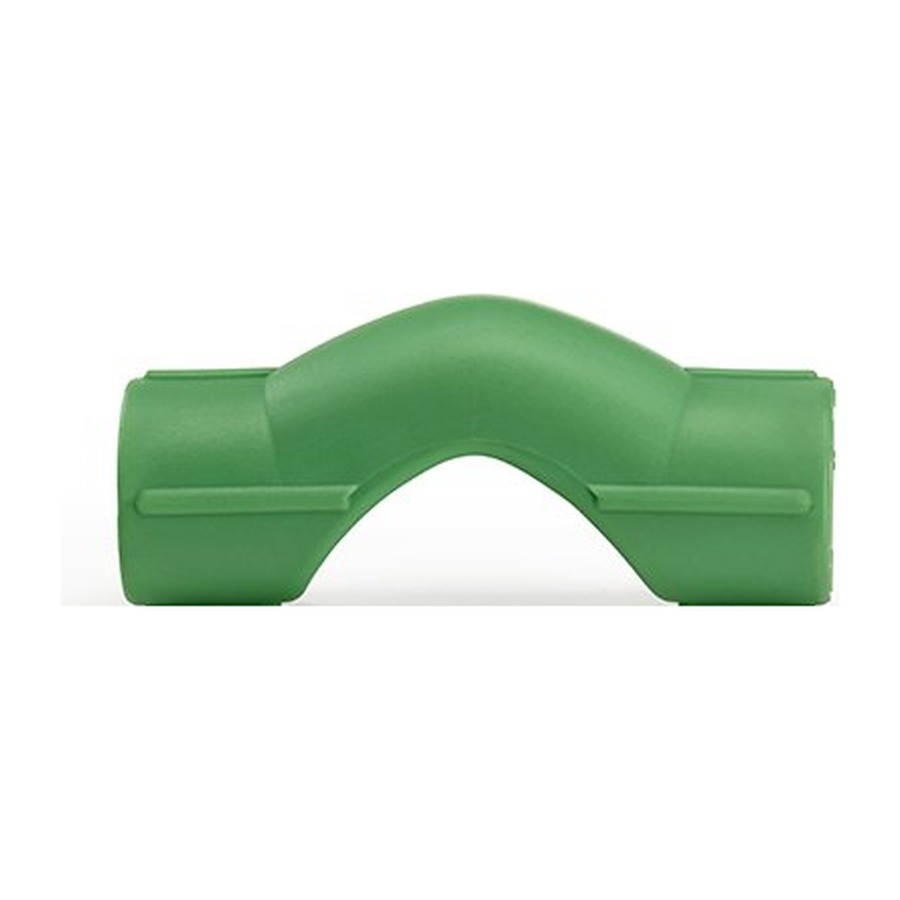

Crossover / Bridge Bend 0008 (short), 0009 (long, pipe type), 0018 (socket type)

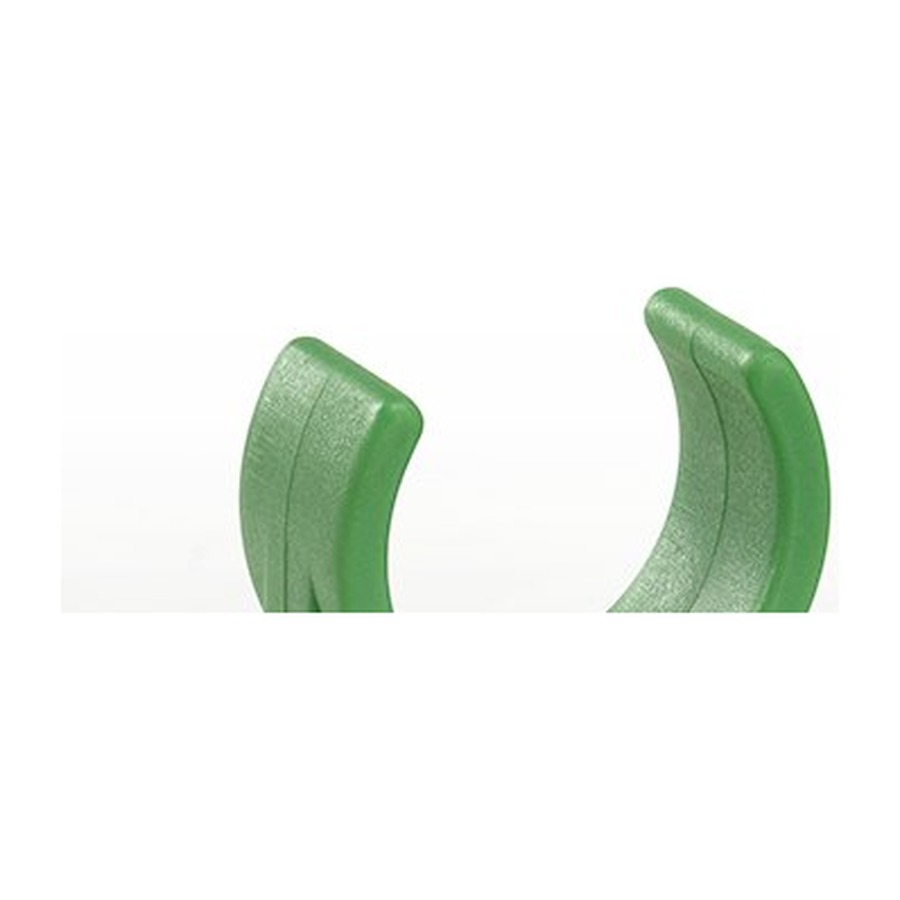

Pipe Clip 0005

Threaded transition fittings (brass / metal insert)

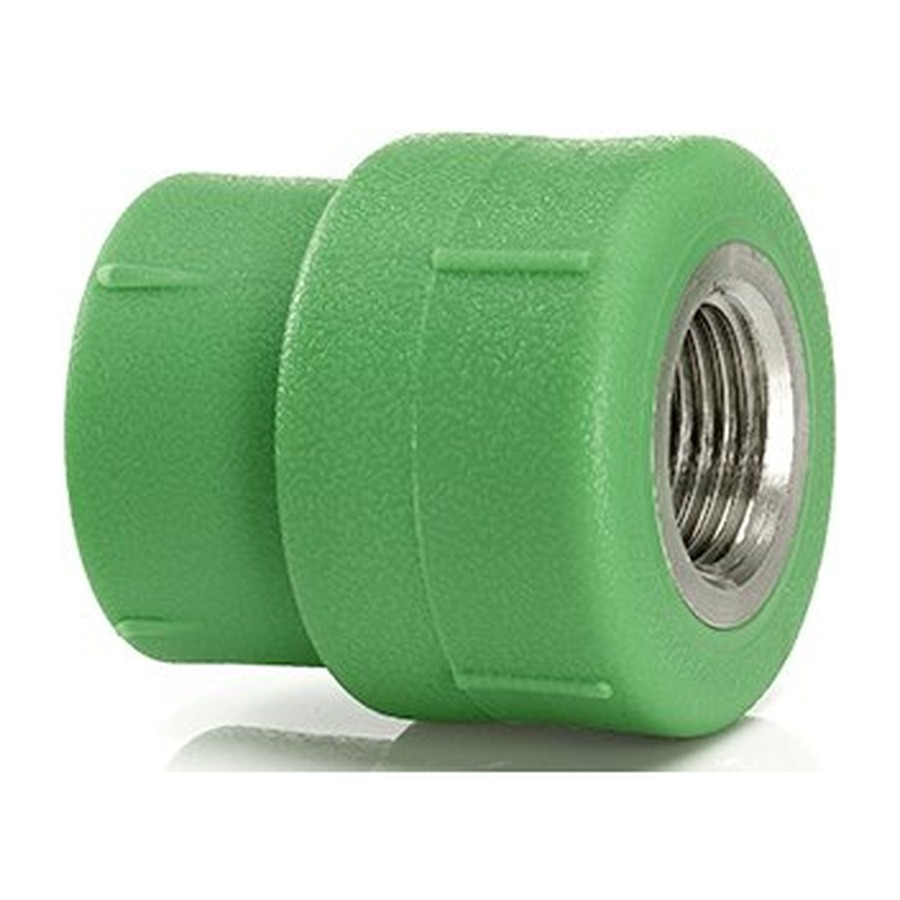

Female Threaded Adapter 0026, 0034 (large Ø, hex)

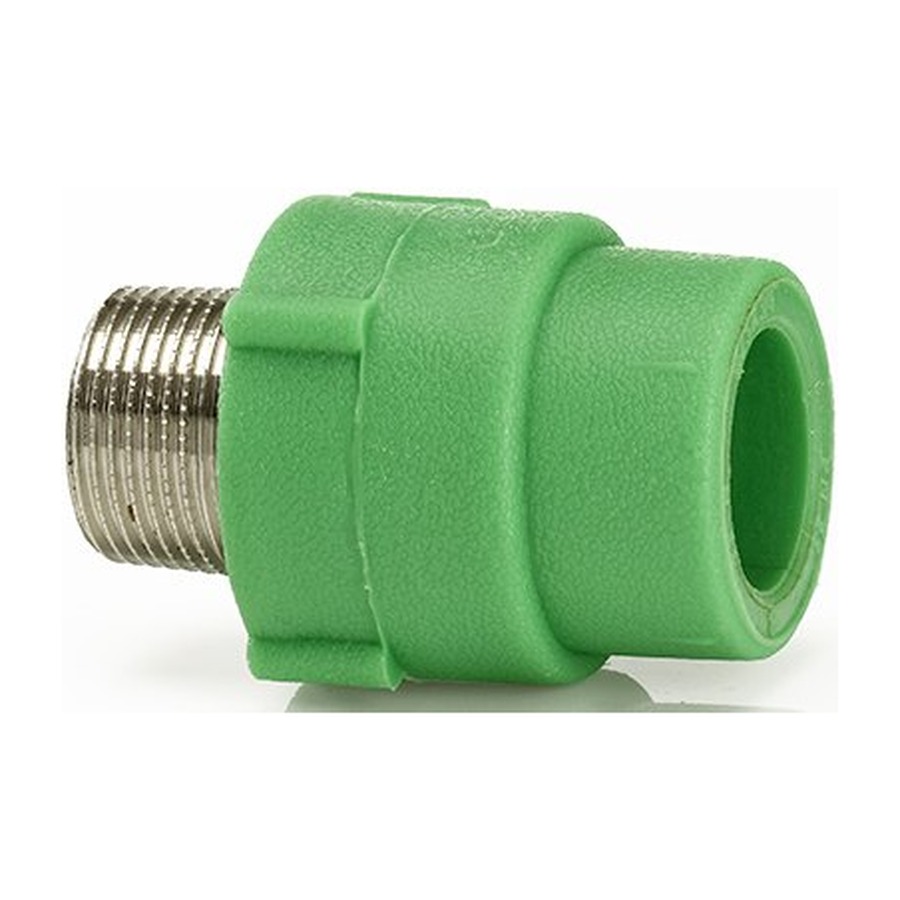

Male Threaded Adapter 0027, 0033 (large Ø, hex)

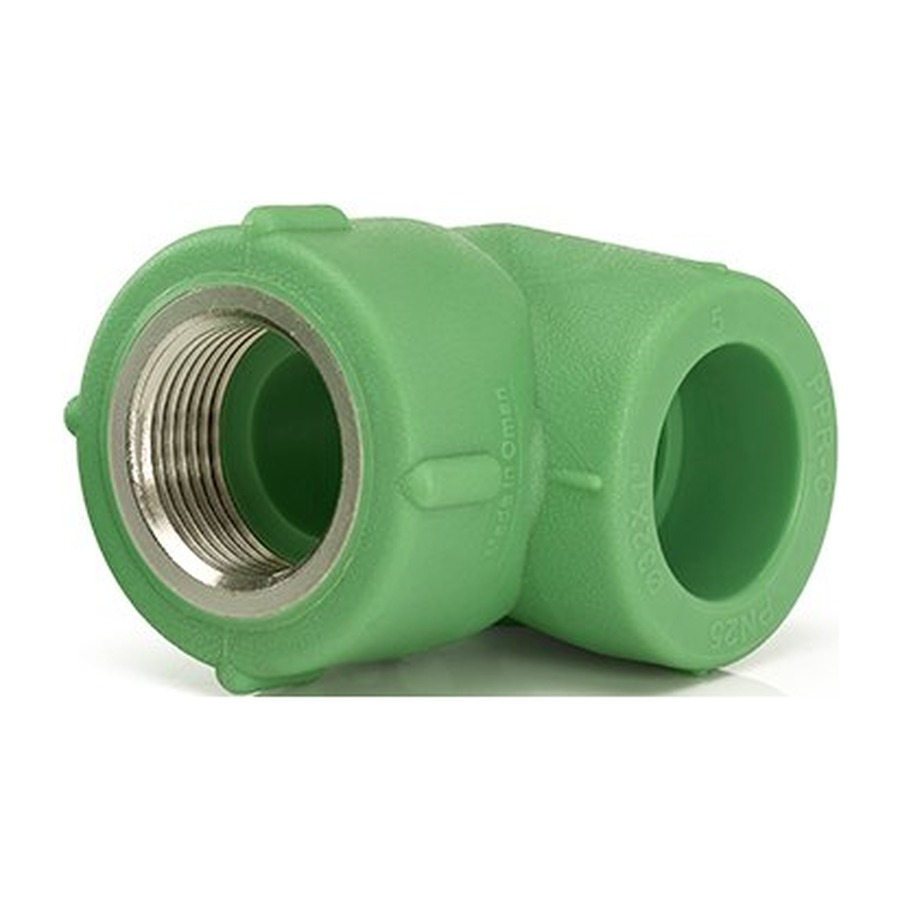

Female Threaded Elbow 0022, 0024

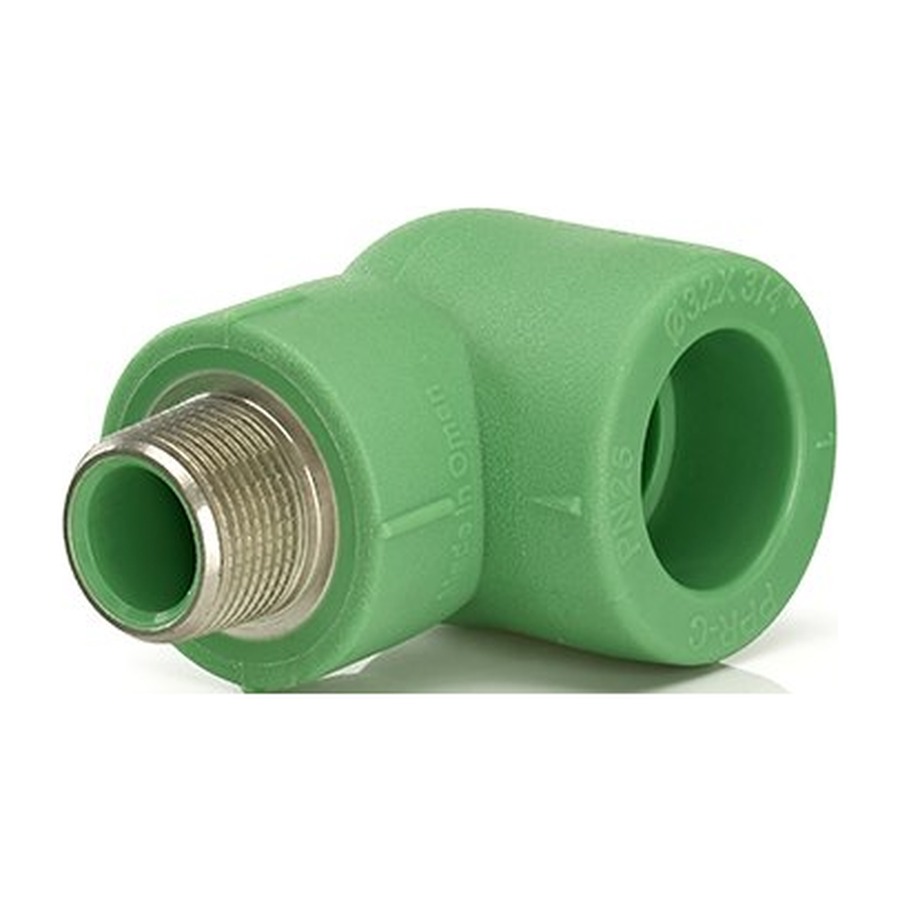

Male Threaded Elbow 0023, 0025

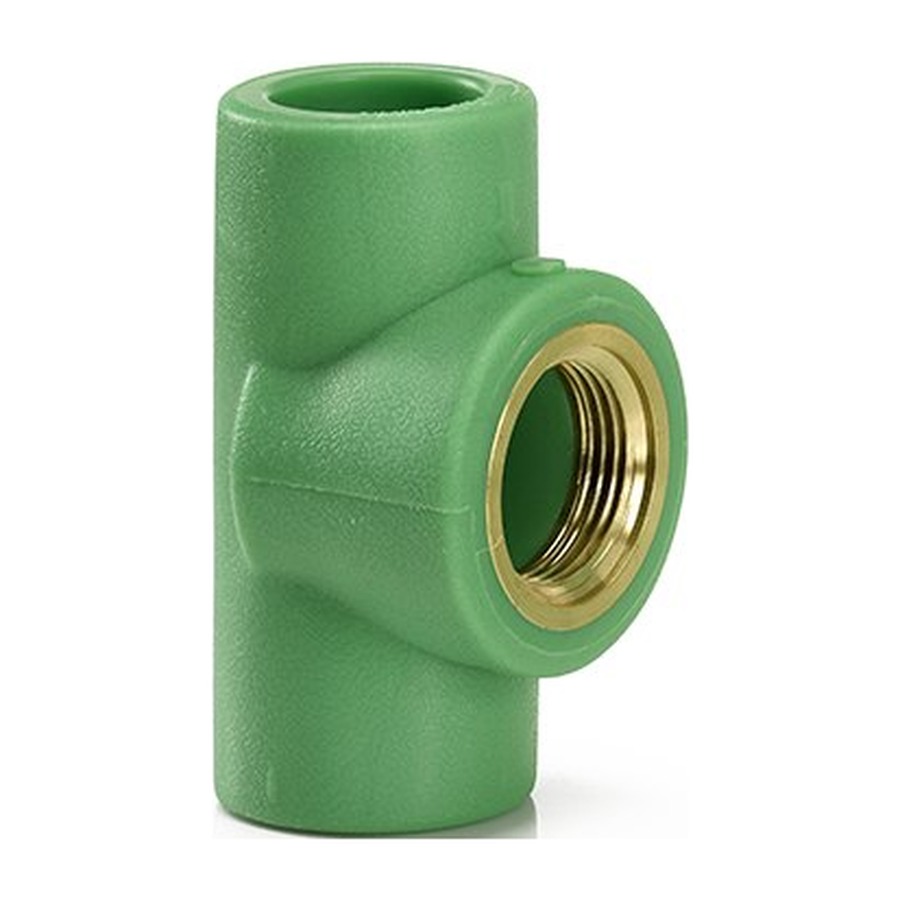

Female Threaded Tee 0019, 0020, 0021

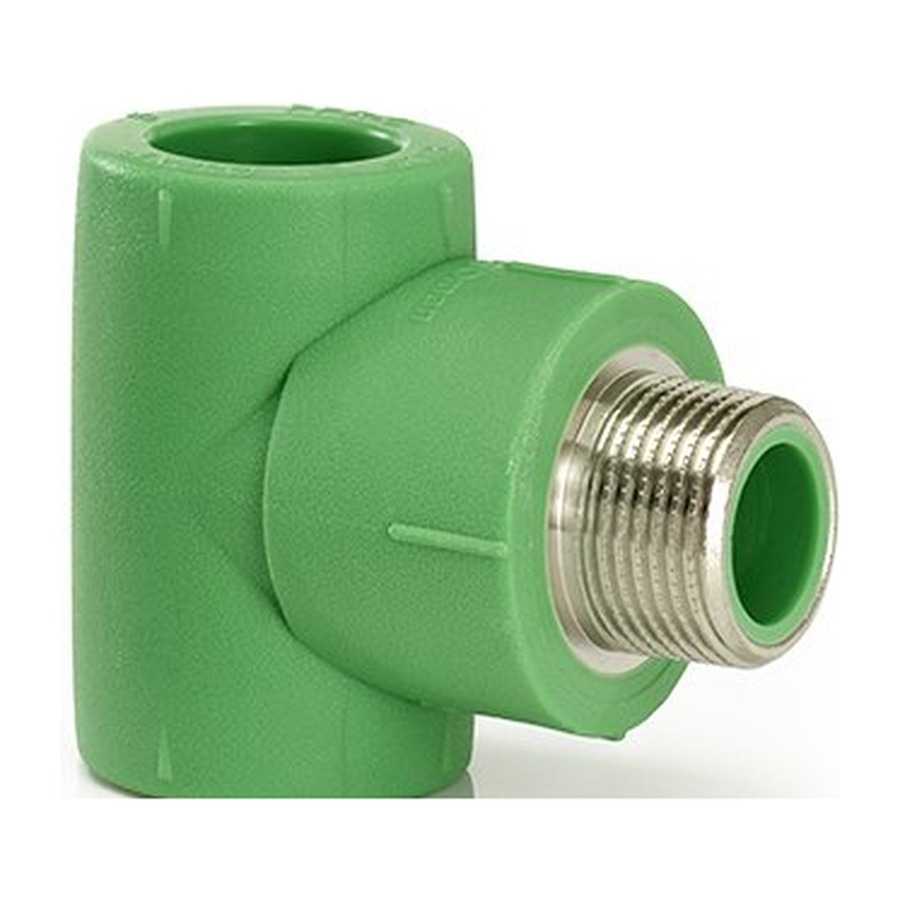

Male Threaded Tee 0028

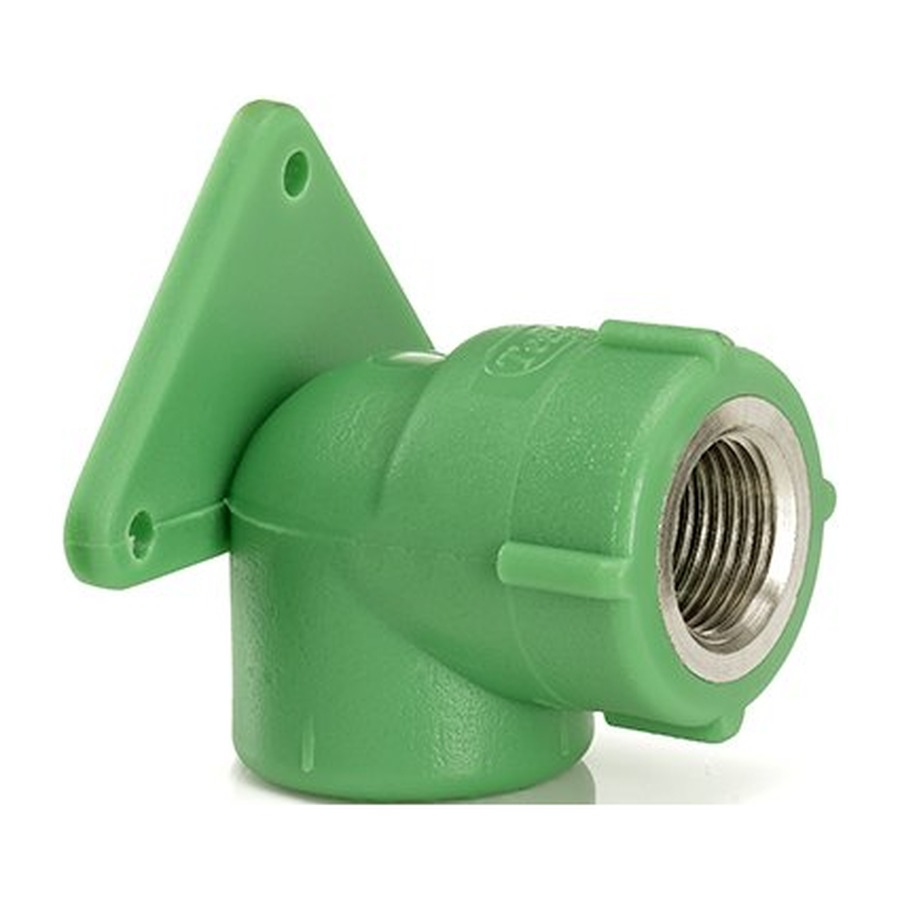

Wall-Plate Elbow – Female Thread 0030

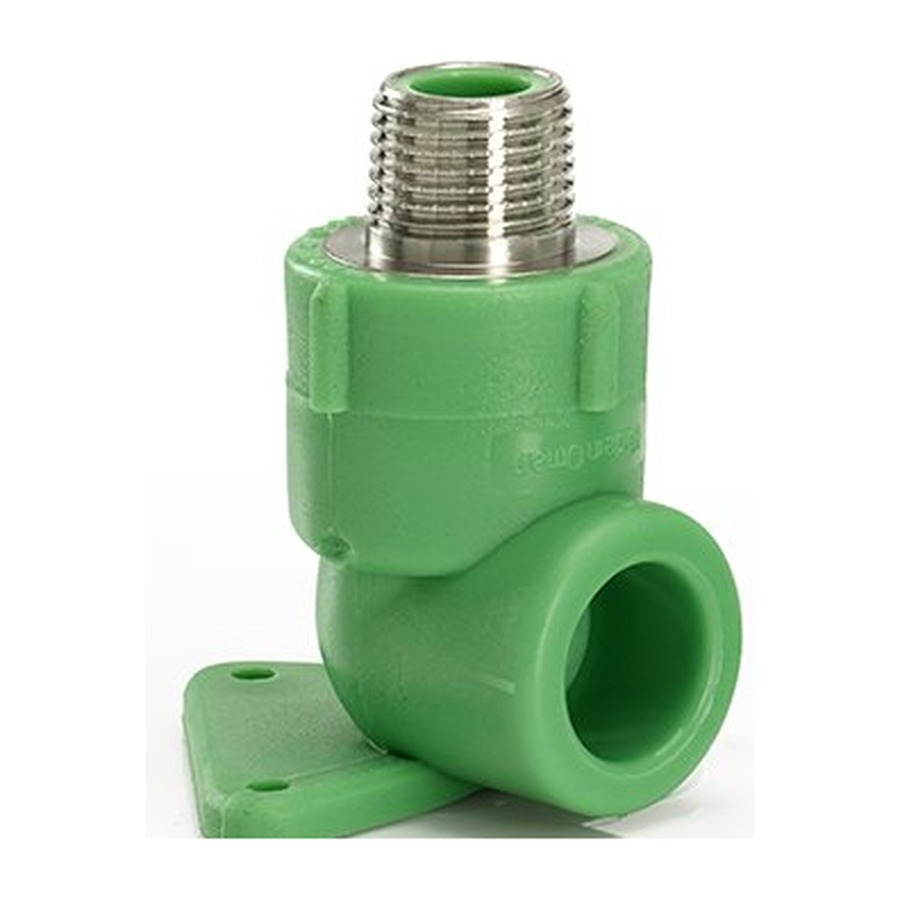

Wall-Plate Elbow – Male Thread 0029

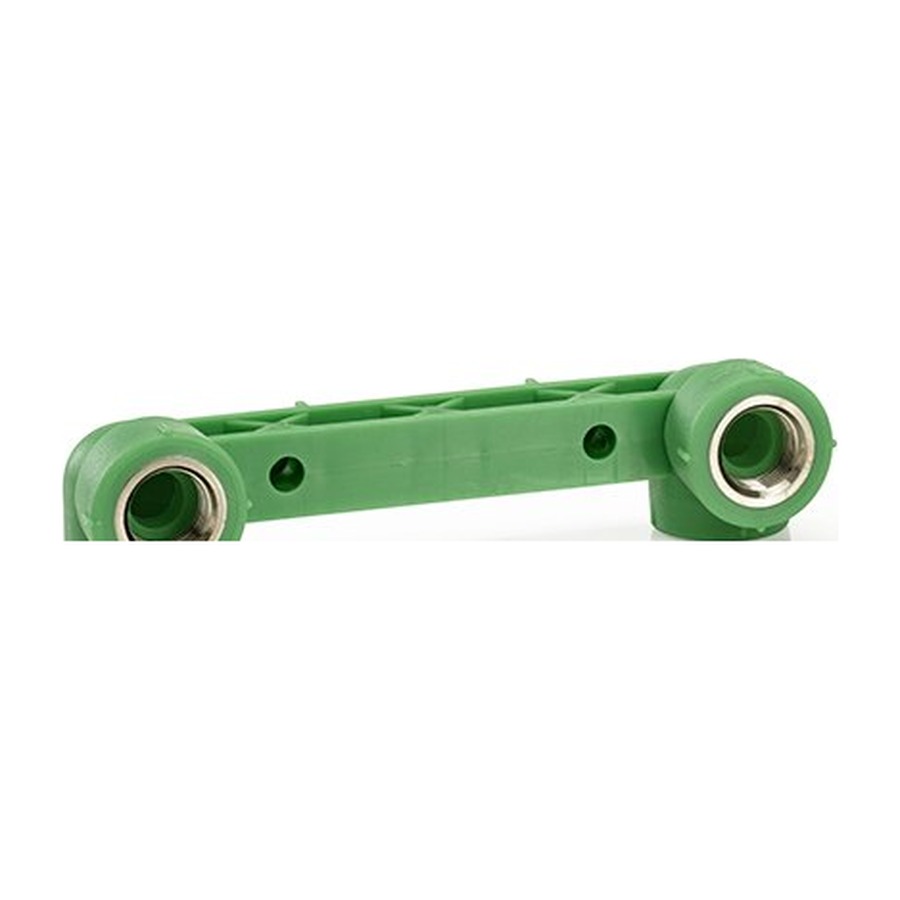

Double Wall-Plate Elbow (mixer bracket) 0035

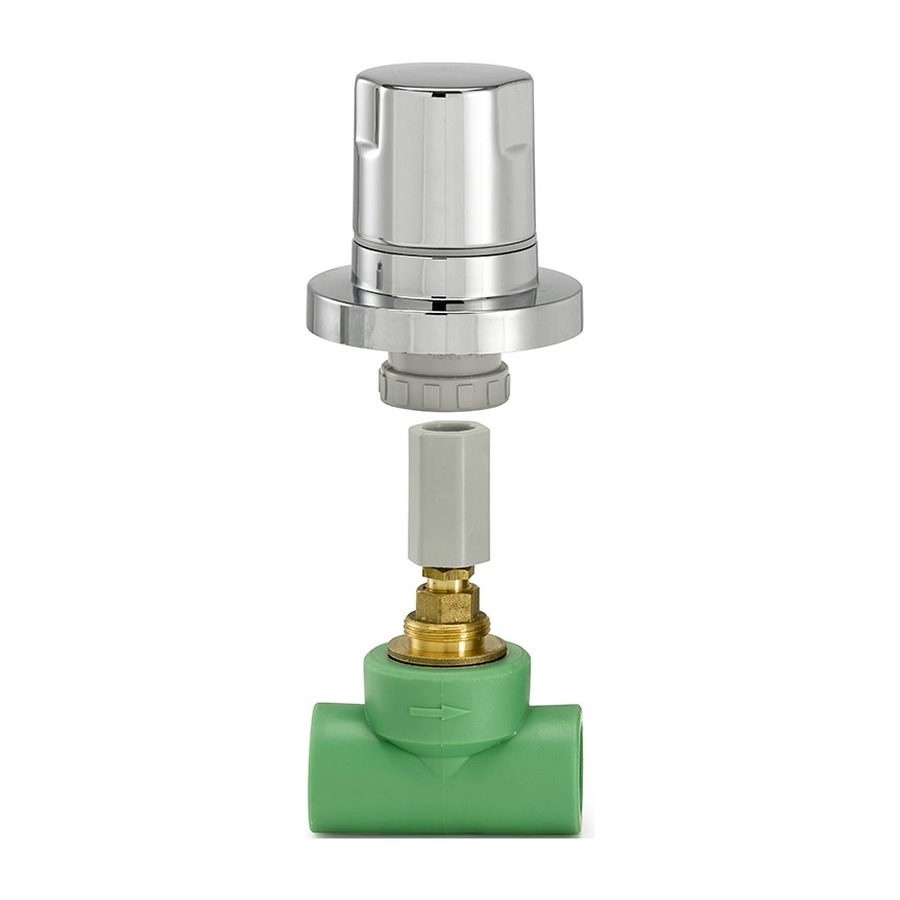

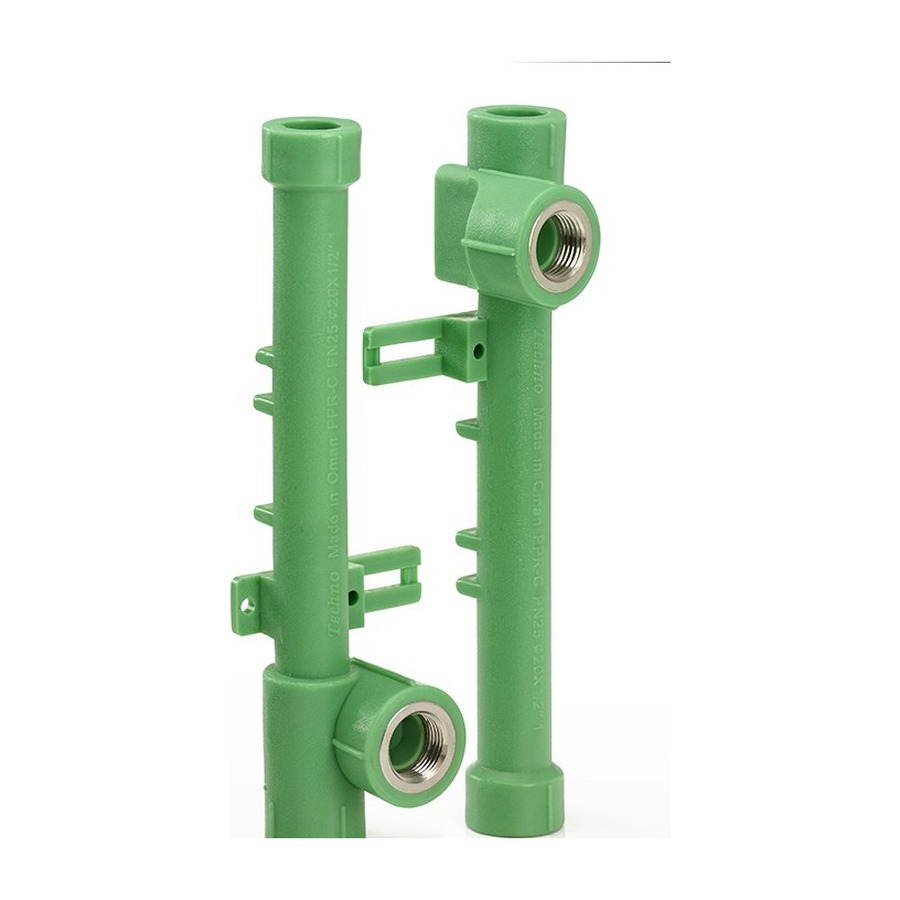

Concealed Mixer Installation Set 0036

Male Threaded Union (metal nut) 0031

Female Threaded Union (metal nut) 0032

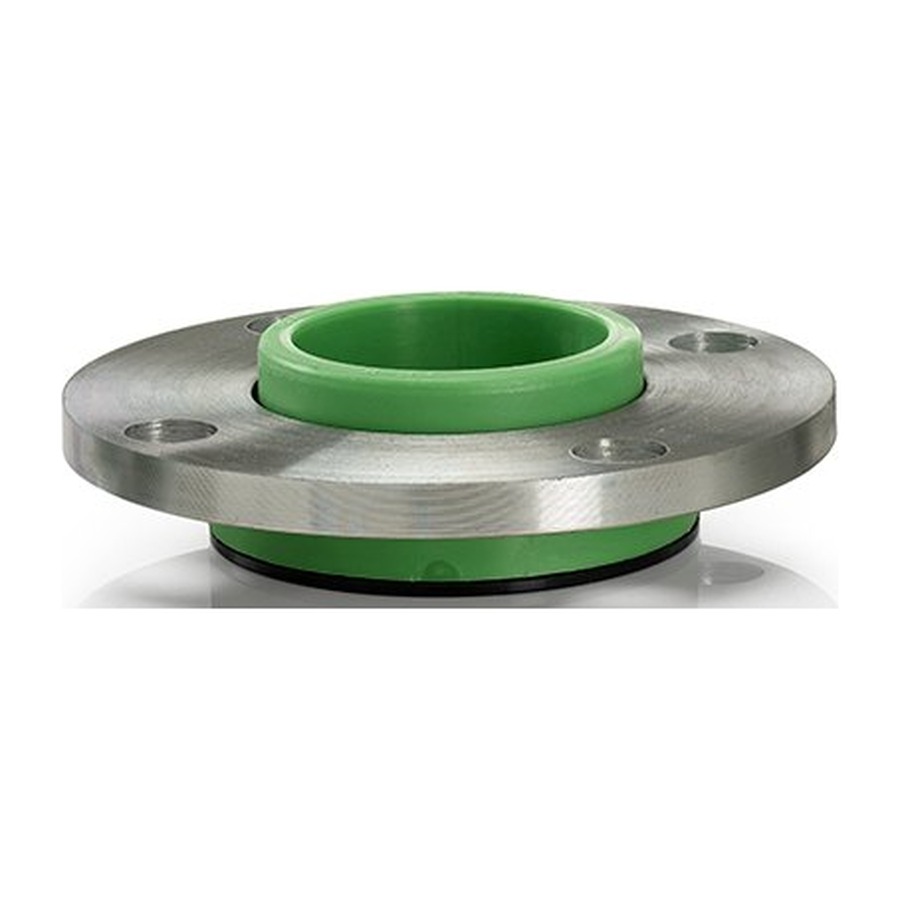

Flange Adapter with Steel Flange 0037

Unions

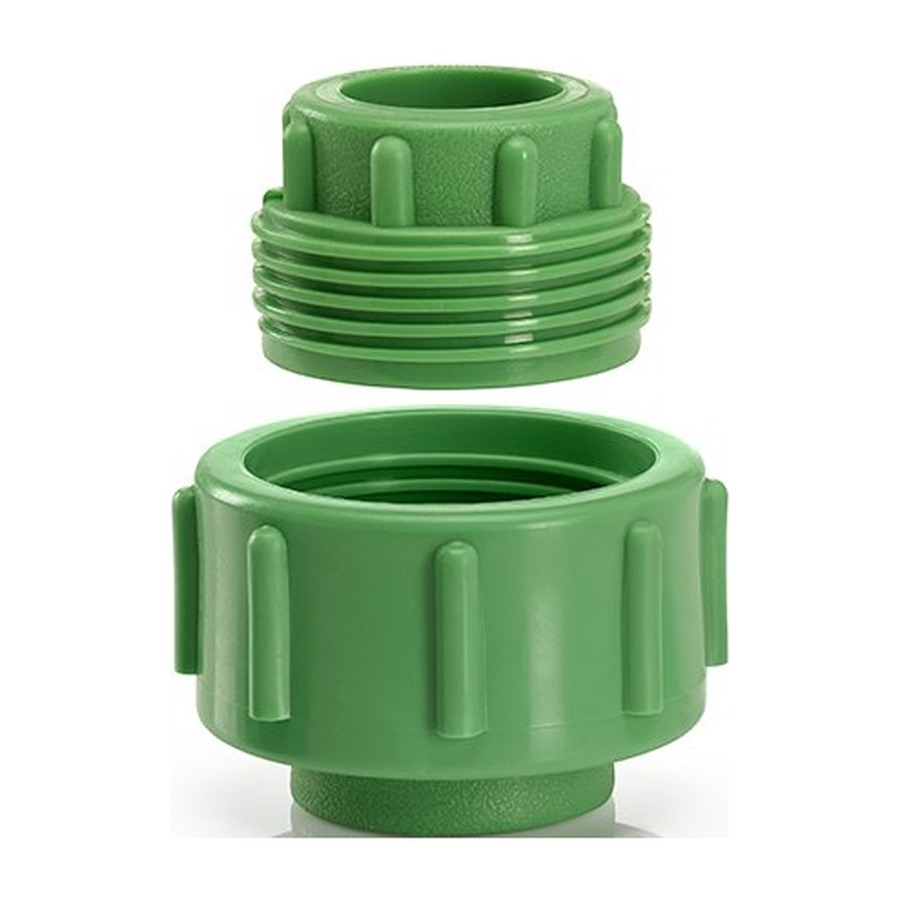

PPR Plastic Union 0002 Low pressure: 10 bar cold water only

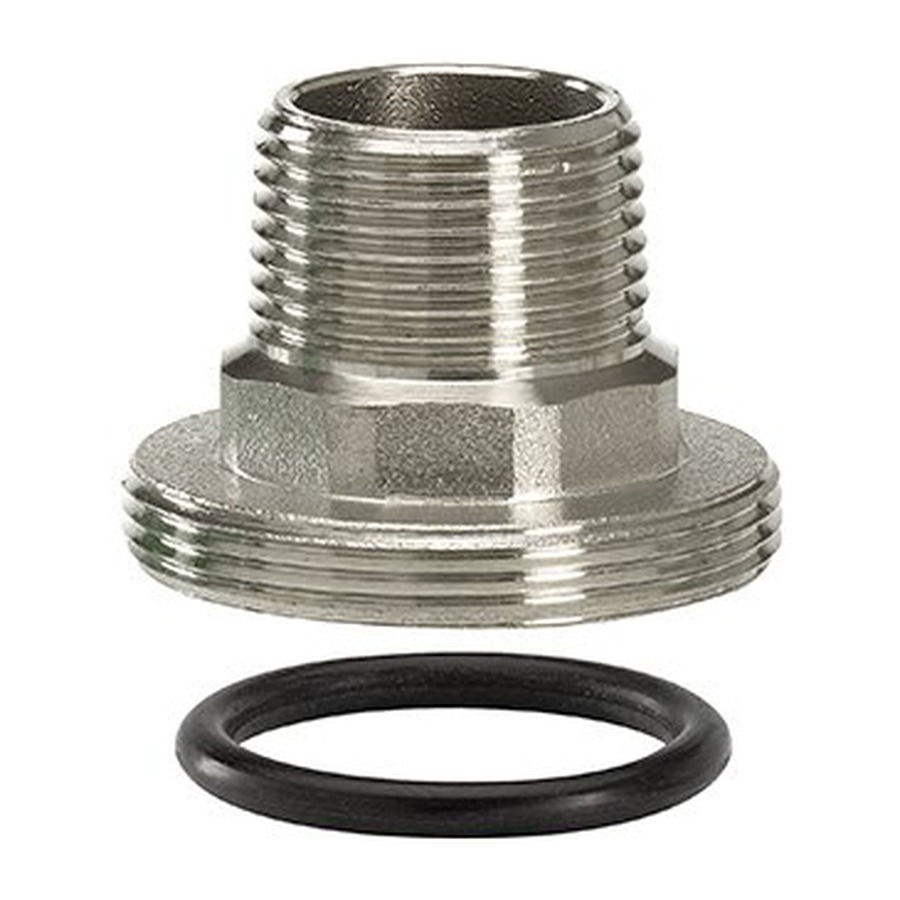

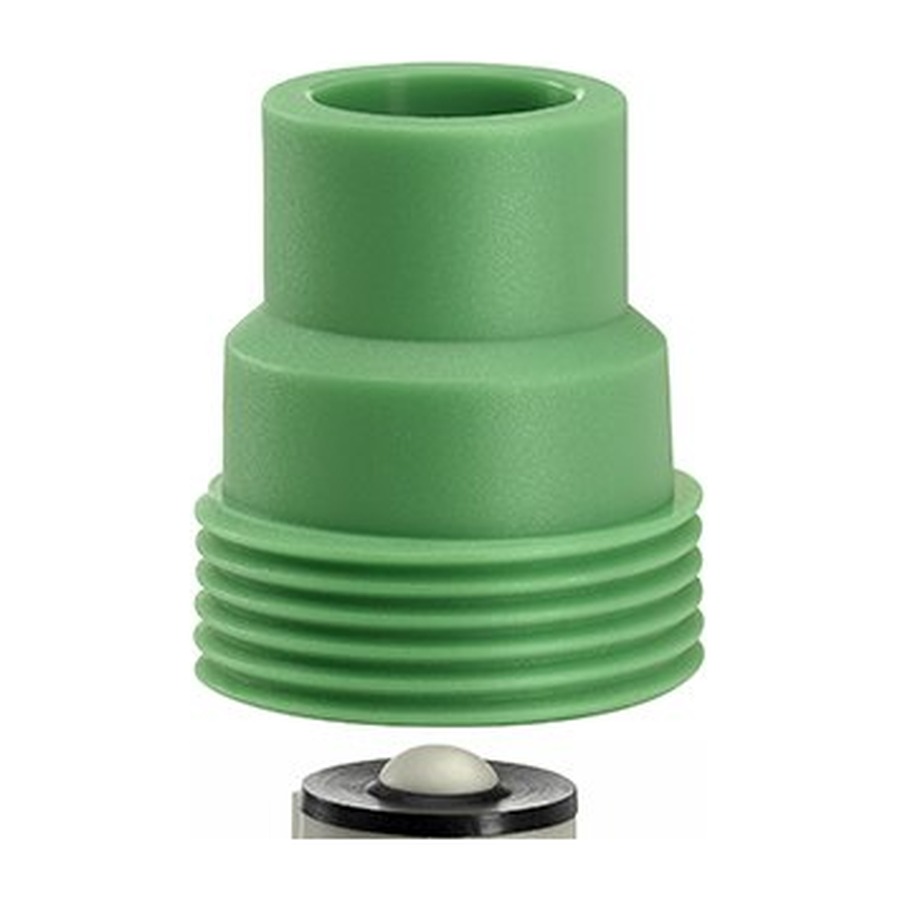

PPR Union-type fitting with metal insert 0001 CONFIRM WITH TECHNO: exploded view (0001A) shows a metal internal cartridge — may be a non-return (check) valve.
